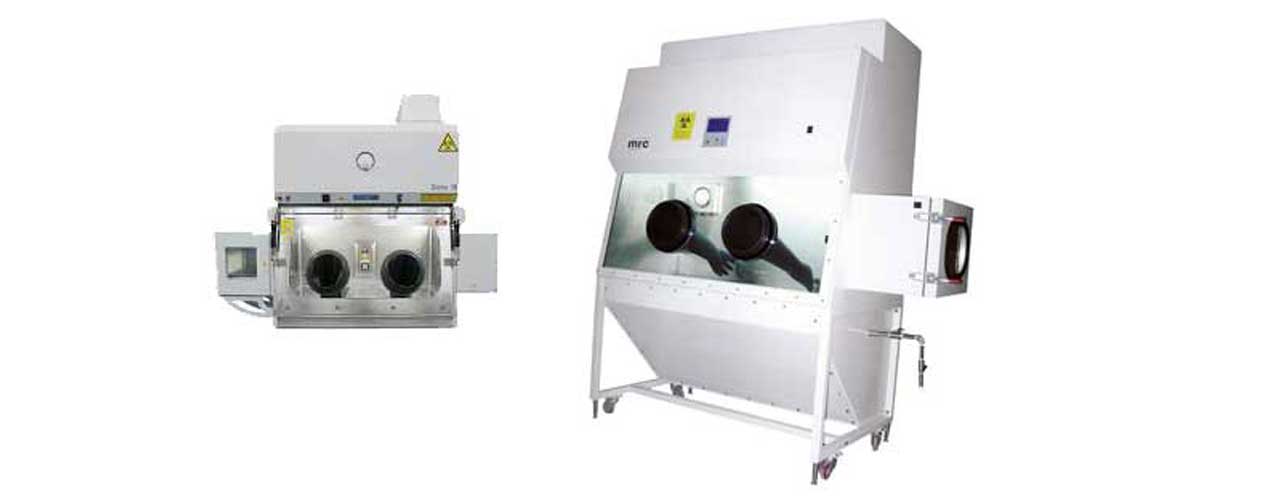

Biosafety complete construction made of mild steel powder coated with perforated stainless steel table top

• UNIQUE FEATURES

  • Ergonomic Design
  • Negligible Maintenance

• APPLICATIONS

  • Application includes isolation and identification of plant / human pathogens, work in virology, tissue culture, sterility testing and recombinant DNA research
  • This Biohazard Cabinet offers operator protection from low to moderate risk biological agents (or Chemical carcinogens), while providing a sterile work environment for the procedure.
  • The cabinet is kept under negative pressure with partial quantity of recirculated air exhausted through a HEPA filter.

  The Additional main features are as under :-



  • Specially suited for wet processing, water fab, chemical work, critical biological work involving virus and pathogens & for microbiology, biochemistry etc.

• CONSTRUCTION

  • Biosafety complete construction made of mild steel powder coated with perforated stainless steel table top

  OR



  • Biosafety complete construction made of stainless steel Quality 304 / 316 with perforated table top.
  • Integral powerful exhaust system, Built in positive Air Curtain effect to prevent inside air from going out and room from entering in, providing total process and operator safety.
  • Exhaust ducting to carry the air outside.
  • Front sliding door, U.V. light, Manometer, Gas cock etc. as Standard accessories.

• SAFETY FEATURES

  • AIR FLOW : 70% of the air is recirculated back in to work area and 30% of the air is HEPA filtered and exhausted out to the environment via a dedicated duct without mixing with the recirculated air.

• TECHNICAL DATA

  HEPA Filter	Media Glass fibre paper -Imported (Mini Pleat HEPA filter)
  Particle retention	0.3 micron
  Efficiency	99.97%
  Pressure Drop	23mm WG
  Pre Filter	Media Non woven -Sysnthetic Polyster (Washable)
  Particle retention	10-15 microns
  Efficiency	90%
  Pressure drop	6 mm WG
  Blower Assembly	Single phase motor, 1440 RPM, directly coupled with a pair of Aluminium, Centrifugal impeller capacity 1000 CFM, Pressure 30mm WG
  Exhaust Assembly	Single phase Motor, 1440 RPM directly coupled with Aluminum impeller, Capacity-300 CFM, Ducting vy PVC pipe with rain guard-DIA 150mm
  Ultra Violet Light	Imported make i.e. SANYO Japan, Philips Holland
  Fluorescent Light	2 or 4 feet with diffuser any standard make i.e. Philips, Surya etc.
  Standard	Pressure Manometer, Additional Power Point, Gas Inlet Nozzle,
  Accessories	Caster Wheel, Wire cord as per customer includes requirements.
