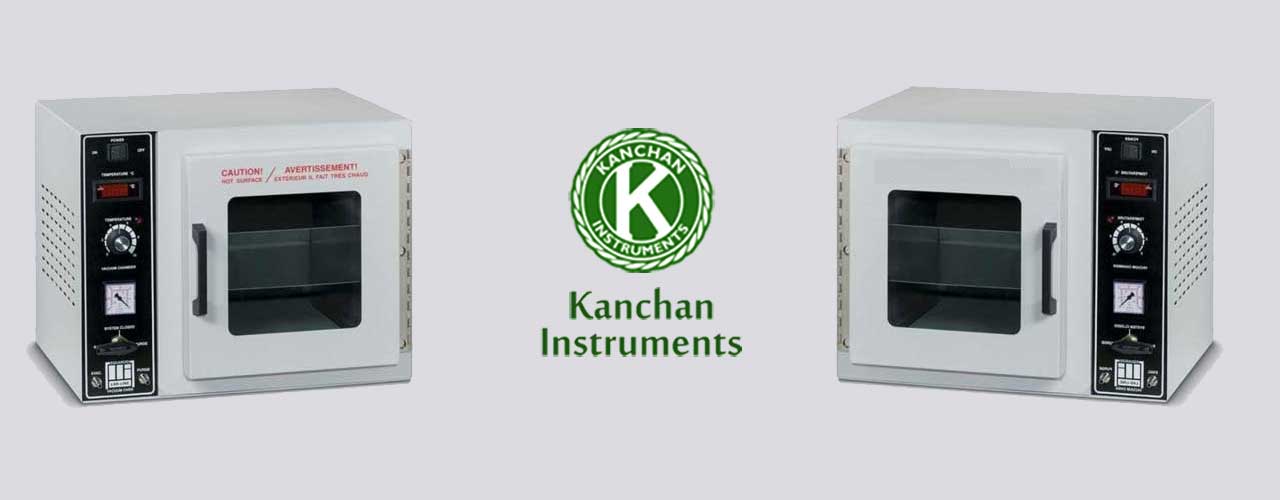

Double walled construction, Inner Chamber is made of thick gauge Stainless Steel 304 Q and Exterior chamber made of mild steel sheet pre greased, pretreated for rust proofing and powder coated.

• UNIQUE FEATURES

  • Ergonomic Design
  • Easy to use
  • High Temperature Accuracy
  • Better Temperature Uniformity

• CONSTRUCTION

  • Double walled construction, Inner Chamber is made of thick gauge Stainless Steel 304 Q and Exterior chamber made of mild steel sheet pre greased, pretreated for rust proofing and powder coated.
  • Gap between the chambers is filled with special grade glass wool for proper insulation to avoid heat loss and there by saving energy.
  • Uniform drying under Vacuum.
  • Supplied with Stainless steel tray, vacuum gauge, vacuum cock, toughened glass window in centre of the door to see through the chamber.

• HEATING ELEMENT

  • Heating element is made from best quality Nichrome wire wounded around the chamber & covered with blankets.

• TECHNICAL DATA

  Temp. Range	50°C to 250°C
  Accuracy	± 2°C
  Digital Temp.	Micro-processor based Auto Tune P.I.D Digital Temperature Controller with controller PT 100 sensor & Resolution 0.1°C . Dual display one for process value (PV) & the another for Set value of Temperature (SV) Power Supply : 230 Volts A.C 50 Hz Single Phase
